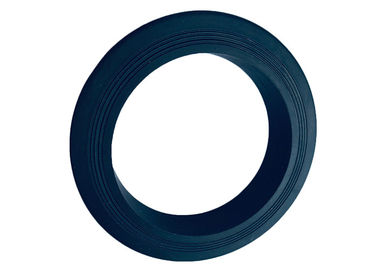

High Temperature And Pressure FKM Weco Union Seal Ring For Sour Serve

Product Description

Hammer union seals are essential components utilized in the connections of flexible hoses or pipes within the oil drilling industry. These seals ensure a fluid-tight connection within the union hardware, which is critical for maintaining system integrity and preventing leaks.

Hammer unions are composed of three main parts: a threaded end, a nut end, and a hammer nut. When the hammer nut is tightened, it compresses the assembly, creating a secure seal with the aid of an elastomeric seal. The seal is designed with a lip to prevent it from dislodging when the union is inverted.

Common types of Hammer Unions include:

Threaded Hammer Unions: Available in sizes ranging from 40, 50, and 602 to 1502.

Butt Weld Hammer Unions: Typically available in sizes 602, 1502, and 2202.

Threaded & Butt Weld Hammer Unions: Available in sizes from 100 to 400.

Our current product offerings primarily include union seals compatible with FIG1502, FIG1002, FIG602, FIG206, and FIG607 styles. Additionally, we have the capability to customize seals for other types based on provided samples or detailed engineering drawings.

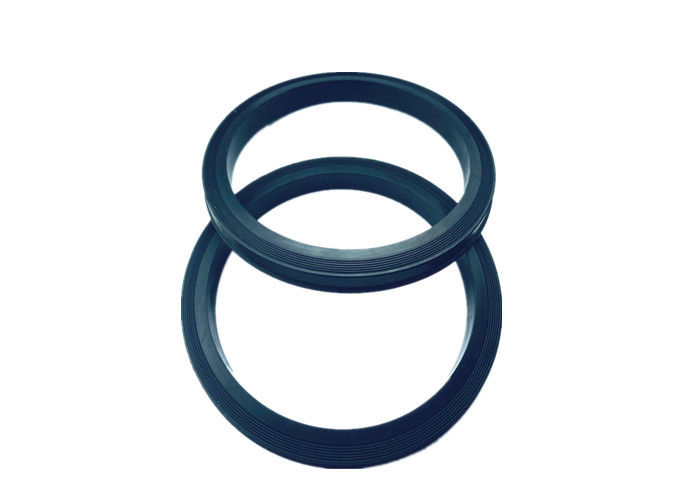

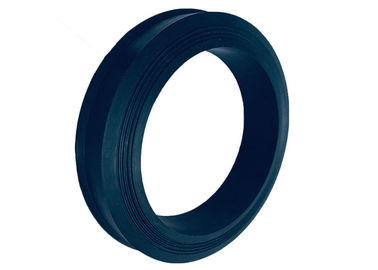

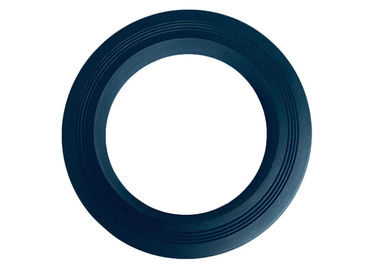

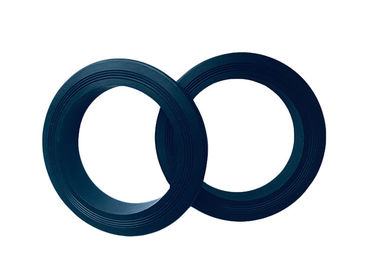

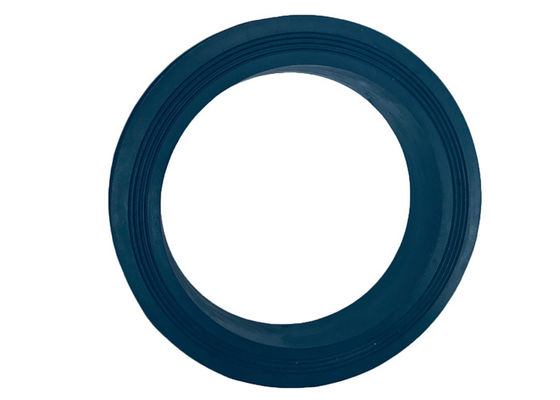

Detailed Photos

About Union Seal, we can provide:

Union seal with brass ring:The use of brass rings can increase the tightness of the seal, prevent leakage, and maintain stable performance in long-term use, extending the service life. In addition, the corrosion resistance of brass can also ensure that the sealing effect is maintained in various environments, especially in weak acids, weak alkalis and salt water.

Union seal with stainless steel ring:It has high corrosion resistance and can resist corrosion from weak corrosive media such as air, steam, water, and chemical substances such as acid, alkali, and salt. The strength and corrosion resistance of stainless steel vary with the alloy elements, and it has high heat resistance and wear resistance.

Rubber union seal:Rubber seals have good elasticity and compression memory, and can adapt to a wide range of temperatures, from extremely low temperatures to high temperatures. Their manufacturing cost is relatively low, making them suitable for large-scale production and application. In low-pressure, low-temperature and normal temperature environments, rubber seals usually have better sealing effects than metal seals.

Material Introduction

Best Selling

Oil Packer Element                                                            Swab Cup                                                    Oil Saver Rubber

Swivel Joint Repair Kit                                                Plug Valve Soft Kit                                                     Redress Kit
