| Place of Origin: | Shanghai,China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD$0.1-0.5/PC |
| Packaging Details: | Carton |
| Delivery Time: | 7-15days according to the quantity of order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 50000pcs Per Month |
| Material: | NBR HNBR FKM PTFE | Color: | Black /Red/Purple/Green And Accept Custom |
|---|---|---|---|
| Size: | 1" 1.5" 2" 3" 4" 6" 7" And Accept Custom | Hardness: | 60-90D |
| Feature: | Durable/Oil Resistant/Chemical Resistant | Application: | For Hammer Union |
| Usage: | Contain Pressure/sealing/fluid Tight Connection | Pressure: | 6000-15000Psi |
| Type: | Pure Rubber/ With Brass Ring/ With Stainless Ring | Service: | OEM/ ODM |
| MOQ: | 100pcs | In Stock: | Yes |
| Samples: | Available | Delivery Time: | 5-15 Days |
| Key Word: | Hammer Union Seal, Hammer Union Lip Seal Ring | ||
| Highlight: | nbr hammer union seal,4 hammer union seal,fkm hammer union seal |
||
Royal Way offer High Quality Hammer Union Seal

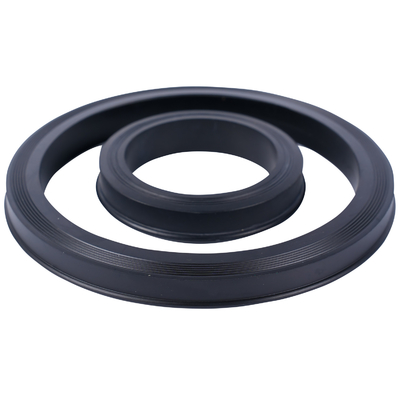

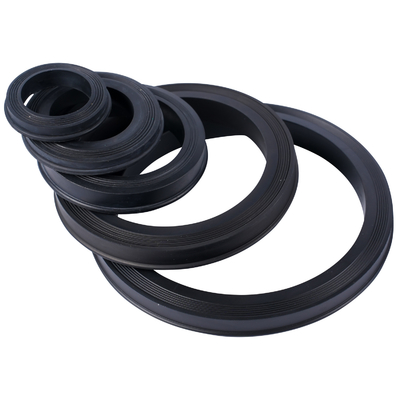

Product Display

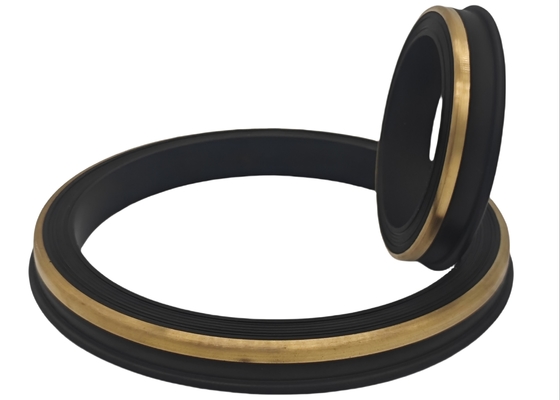

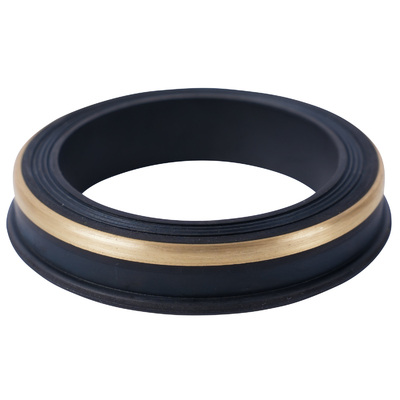

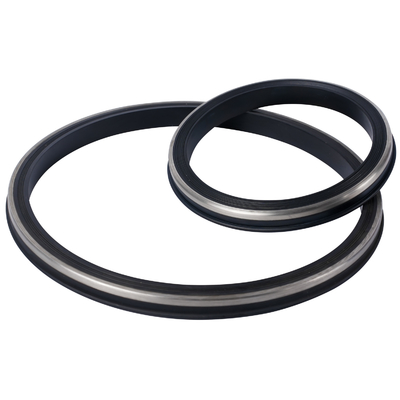

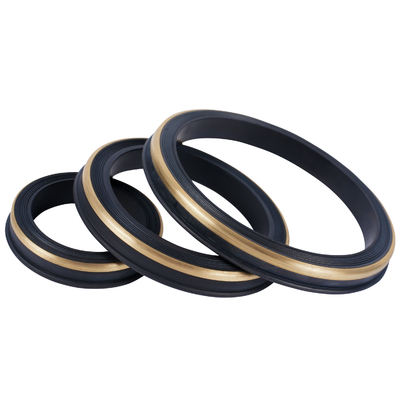

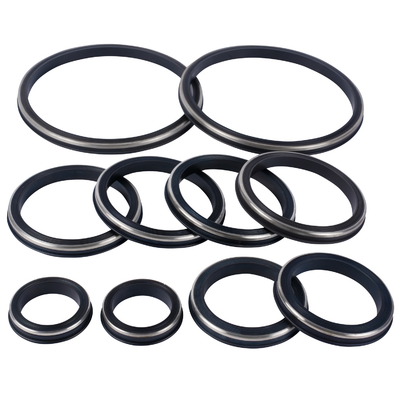

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware. Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted. Some profiles such as Fig 1502, Fig 602, Fig 1002 , Fig 607 etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union. We produce 2",3", and 4" Hammer Union Seals in Nitrile for standard service and in FKM or HNBR for Sour Gas Service. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring.
Feature:
1.Oil Resistance
2.Wide temperature range: Heat resistance, low temperature resistance
3.Chemical Resistance
4.Durable
5.Waterproof
6.H2S/CO2 Resistance
7.Excellent sealing performance
Application:
1.Oil and Gas: Used extensively in drilling, fracturing, and production operations. They connect flow lines, choke and kill lines, and other high-pressure lines.
2.Industrial: Also found in industries where high-pressure fluid transfer is necessary, such as chemical plants and mining operations.
3.Pump/Cylinder/Valve
Available Type and size
1'' 1502, Buna/FKM/HSN
1-1/2'' 1502, Buna/FKM/HSN
2'' 607, Guiberson style seal ring
2'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
3'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
4'' 602/1002/1502, Buna/FKM/HSN(Brass/Stainless backup)
2'' FIG 206, Buna/FKM/HSN
3'' FIG 206, Buna/FKM/HSN
4'' FIG 206, Buna/FKM/HSN
Material Introduction

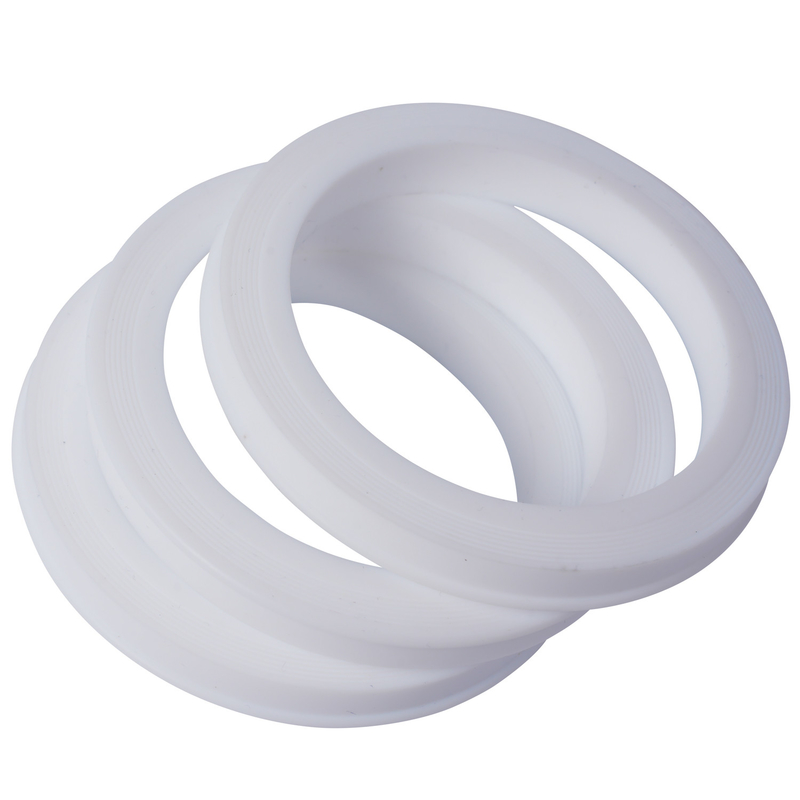

We mainly provide Hammer Union Seals in NBR, HNBR, FKM, PTFE Rubber.
| Material name | Temperature range | Advantage | Deficiency |
| NBR | -40ºC to 120ºC -40ºF to 248ºF |
1.Presently the most widely used rubber in the seal industry 2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance 3.Resistance to most mineral oils and greases |
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) | -40ºC to 160ºC -40ºF to 320ºF |
1.Chemical resistance 2.Wider temperature range than standard nitrile 3.High strength material that resists extrusion, abrasion, and wear 4.Water and steam resistance to +149ºC(+300ºF) 5.H2S resistance up to 10% 6.Commonly used with petroleum oils and co2 |
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) | -26ºC to 230ºC -15ºF to 446ºF |
1.Excellent resistance to higher temperature, petroleum, and gasoline 2.Good chemical resistance, including to refrigerants(R12) 3.Great mechanical properties are retained over a wide temperature range 4.Commonly used with ammonia |
Poor resistance to aromatic hydrocarbons, polar solvents, and toluene |
| PTFE(Plyetrafuoroethylene) | -268ºC to 250ºC -450ºF to 483ºF |
Vitually universal chemical resistance |
Company and factory Introduction
Shangahi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad, Qinuo has a brand name "SHQN® ".
Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
FAQ
Q1. Are you a factory or trading company?
We have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery.
Q2. What's your sample policy ?
We can supply the sample if we have ready parts in stock, but customized parts have to pay the mold fee.
Q3. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What's your Delivery time ?
If the good are in stock generally it is 5-7 working days after receiving your payment. About 7-15 working days if we have mold or 21-30 working days without mold. The specific delivery time depends on the items and quantity of your order quantity.
Q5.What's your payment terms?
For sample and small order, 100% T/T or Paypal. For bulk order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q6. Why choose to cooperate with you? What's your advantage?
1). Strong point:We have our own factory,so we can quarantee high quality with a reasonable and favorable price 2). We can offer you a good after-sell service, prompt deliver. 3). We can provide various size and colors according to customers' requirements. 4). By long time testing, quality proved to be excellent. 5). Updated product design. 6). Advanced manufacturing process, composite global standards. 7). We win by the high quality and then have a long-term business relationship.
Q7. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit; 2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Our oil and gas parts are diverse and extensive, so if there is no item what you need, we encourage you to send the drawing or samples to us.
So if you have any questions for plastic&rubber parts, please contcat us! Looking forward to cooperate with you!
